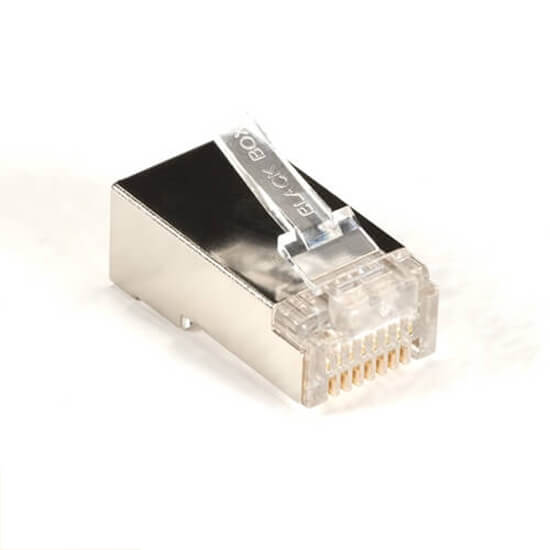

The Cat5e FTP modular plug is an essential component in establishing Ethernet network connections. It is designed to be inserted into a specific direction and can be easily connected and disconnected from LAN ports, hubs, switches, and other network devices. The plug’s design ensures that it stays securely in place, preventing any loss of connection that may result from plastic connectors. Overall, the Cat5e FTP modular plug plays a crucial role in ensuring the reliability and stability of Ethernet network communications.
Cat5e 8P8C used for network cable
Contact blade: Gold plating 1u
Materials: Plastic
Size of the RJ45 Plug (max.): ~2.2(L) x 1.1(W) x 1.3(H)cm
Cable- to-plug tensile strength:20lbs(89n) (min.)
Durability: 750 matching cycles
Temperature range:-40~60
A Cat5e FTP modular plug is a type of connector used for terminating Ethernet cables that are built with Category 5e (Cat5e) twisted pair cables and have Foil Twisted Pair (FTP) shielding. The modular plug is attached to the end of the cable, allowing it to be connected to networking equipment such as routers, switches, and network interface cards.
The Cat5e FTP modular plug is designed to provide a secure and reliable connection, with the shielding helping to reduce the amount of electromagnetic interference (EMI) that can disrupt network transmissions. The plug consists of a plastic body with gold-plated contacts that are used to establish the electrical connection with the equipment.
To install a Cat5e FTP modular plug, the cable is first stripped to expose the individual twisted pairs and the foil shielding. The individual wires are then arranged according to the wiring scheme required by the network configuration, and the plug is crimped onto the end of the cable using a specialized crimping tool.
Overall, the Cat5e FTP modular plug is a commonly used connector in Ethernet networking that provides a secure and reliable connection for network cables that require FTP shielding.
