Characteristic：

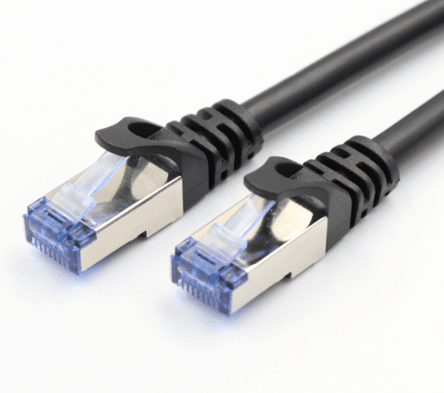

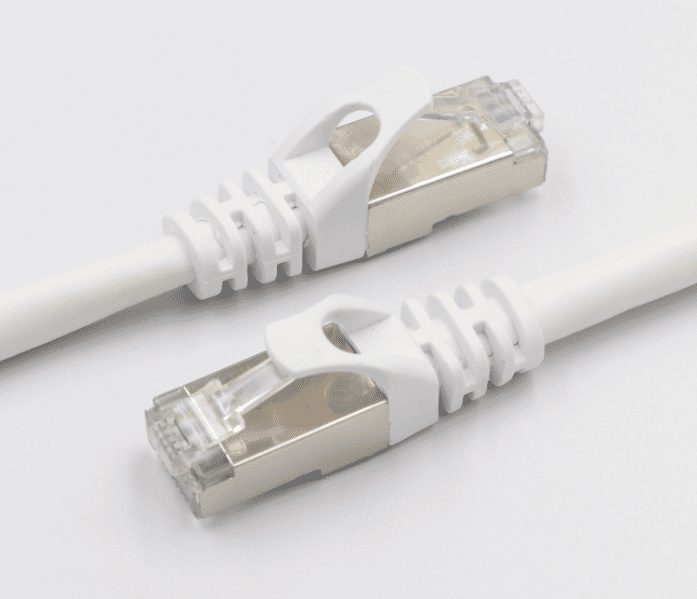

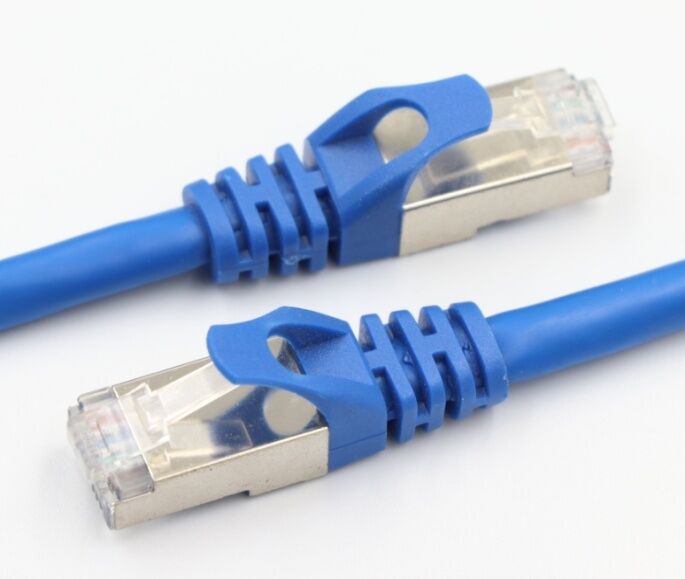

LHDE Cat6 FTP Patch Cords suitable for computer connecting with hub, indoor and outdoor wiring, waterproof, oil resistant, UV sunscreen.
Performance:1000Mbps transmission speed, bandwidth 250MHz, Supports 1000Base-T 1000M Ethernet protocol, Stable transmission speed of 1000bps.
All LHDE RJ45 patch cords are in compliance with UL TIA/EIA 568B Standard and RoHS/REACH/CE/CCC/ISO9001.
| Mechanical and environmental characteristics | |||
| Product Type | Cat6 FTP Patch Cable | Color | White/Blue/Black Customize |
| Connector | RJ45(With shielding) | Shield | FTP(With shielding). |
| Conductor | 4 pairs 28AWG( 7/0.12mm)~4 pairs 26AWG( 7/0.16mm) Bare Copper | Length | 0.5M; 1M; 1.5M; 2M; 3M; 5M; 8M; 10M; 12M; 15M; 20M; 25M; 30M or Customized |
| Jacket | PVC, LSZH,Customized OD: 6.0~6.2mm |
Fire Rating | CMX |
| Complance | RoHS/REACH/CE/CCC/ISO9001 | Standard | TIA/EIA 568B |
| Operating Temperature | -20°C to 60°C | Storage Temperature | -20°C to 60°C |
