Network transmission,
Laptop computer,
Desktop computers,
Router,
Network switch,
Data center,
Security monitoring,
Smart TV,
POE power supply
Characteristic：

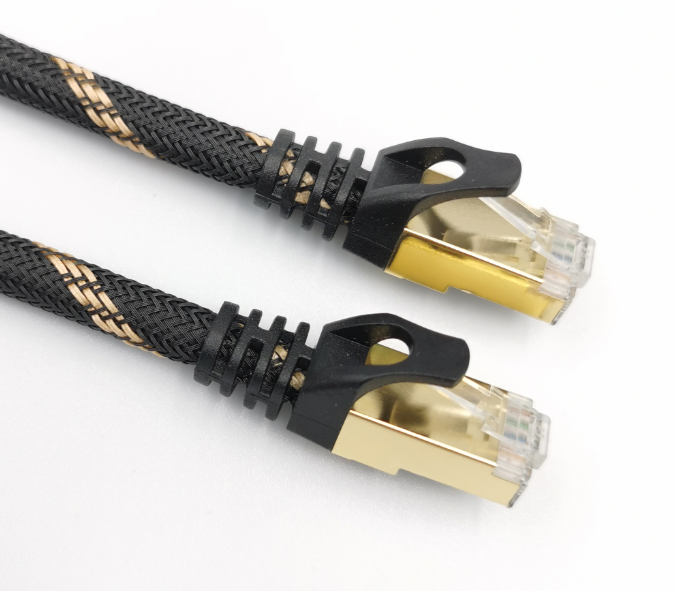

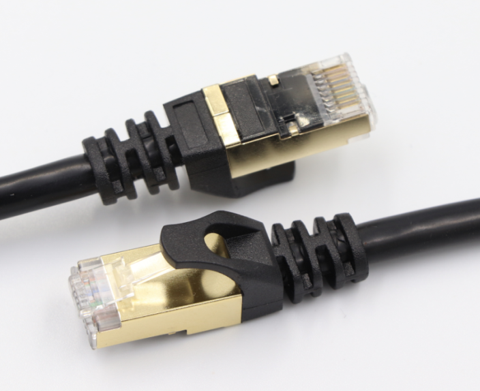

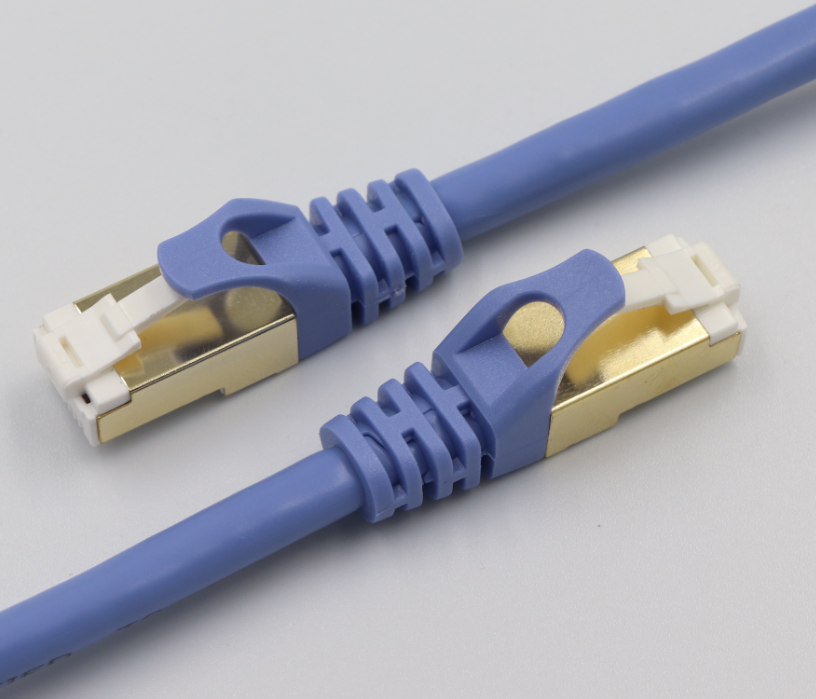

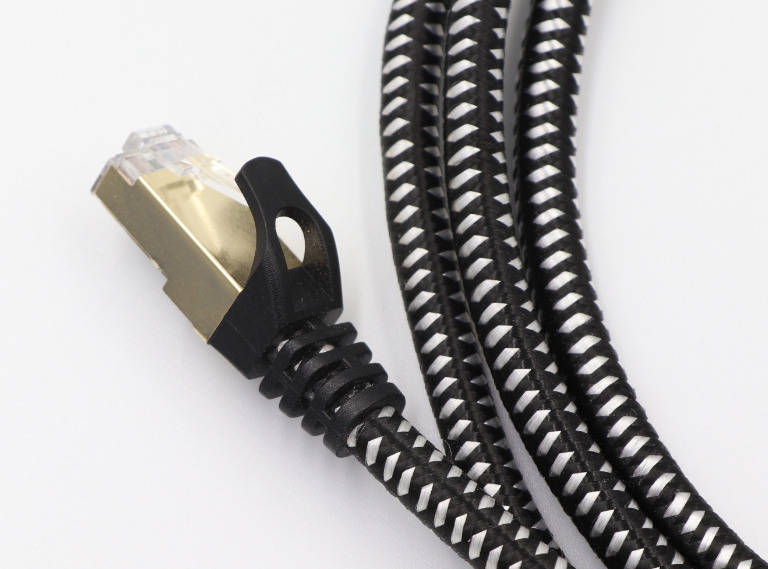

LHDE Cat6a FTP Patch Cords suitable for computer connecting with hub, indoor and outdoor wiring, waterproof, oil resistant, UV sunscreen.
Performance:10Gbps transmission speed, bandwidth 600MHz, Supports 10000Base-T 10G Ethernet protocol, Stable transmission speed of 10Gbps.
All LHDE RJ45 patch cords are in compliance with UL TIA/EIA 568B Standard and RoHS/REACH/CE/CCC/ISO9001.
| Mechanical and environmental characteristics | |||
| Product Type | Cat6a SFTP Patch Cable | Color | White/Blue/Black Customize |
| Connector | RJ45(With shielding) | Shield | SFTP(With shielding). |
| Conductor | 4 pairs 28AWG( 7/0.12mm)~4 pairs 26AWG( 7/0.16mm) Bare Copper | Length | 0.5M; 1M; 1.5M; 2M; 3M; 5M; 8M; 10M; 12M; 15M; 20M; 25M; 30M or Customized |
| Jacket | PVC, LSZH,Customized OD: 6.0~6.5mm |
Fire Rating | CMX |
| Complance | RoHS/REACH/CE/CCC/ISO9001 | Standard | TIA/EIA 568B |
| Operating Temperature | -20°C to 60°C | Storage Temperature | -20°C to 60°C |
