Network transmission,
Laptop computer,
Desktop computers,
Router,
Network switch,
Data center,
Security monitoring,
Smart TV,
POE power supply
Characteristic：

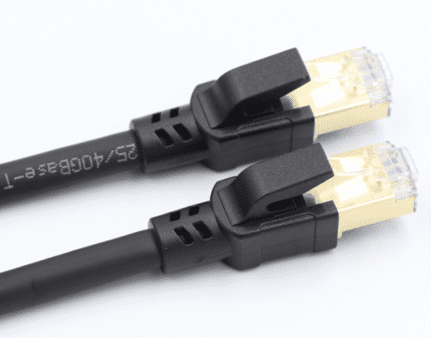

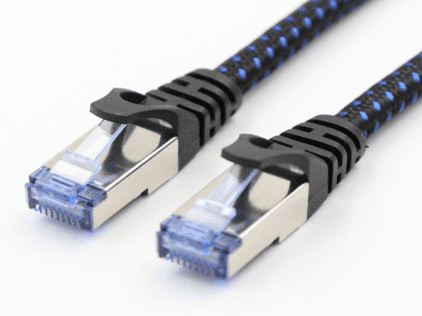

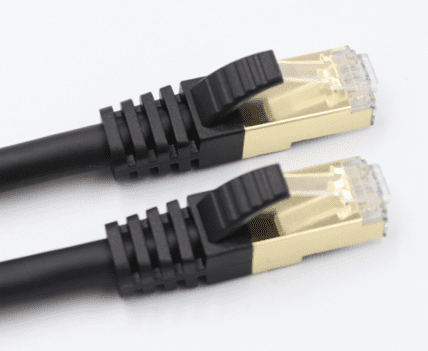

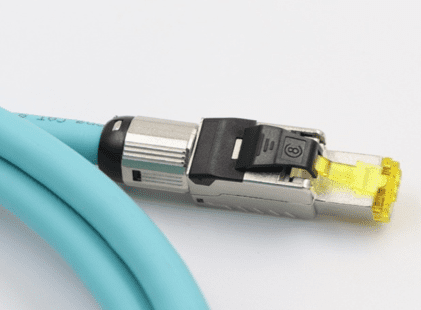

LHDE CAT8 40G High speed SFTP Double Shield Cable is Easy to carry. Suitable for laptop users; Suitable for carpet, notebook computer users, small space and other wiring environment, ultra-thin wire does not occupy space.
Performance: 10000Base-T 10G Ethernet protocol, Stable transmission speed of 40Gbps.
All LHDE RJ45 patch cords are in compliance with UL TIA/EIA 568B Standard and RoHS/REACH/CE/CCC/ISO9001.
| Mechanical and environmental characteristics | |||
| Product Type | CAT8 40G High speed SFTP Double Shield | Color | White/Blue/Black Customize |
| Connector | RJ45(With shielding) | Shield | FTP(With shielding). |
| Conductor | 4 pairs 26AWG( 7/0.16mm)~4 pairs 22AWG( 7/0.23mm) Bare Copper | Length | 0.5M; 1M; 1.5M; 2M; 3M; 5M; 8M; 10M; 12M; 15M; 20M; 25M; 30M or Customized |
| Jacket | PVC, LSZH,Customized OD: 6.5~8.5mm |
Fire Rating | CMX |
| Complance | RoHS/REACH/CE/CCC/ISO9001 | Standard | TIA/EIA 568B |
| Operating Temperature | -20°C to 60°C | Storage Temperature | -20°C to 60°C |
