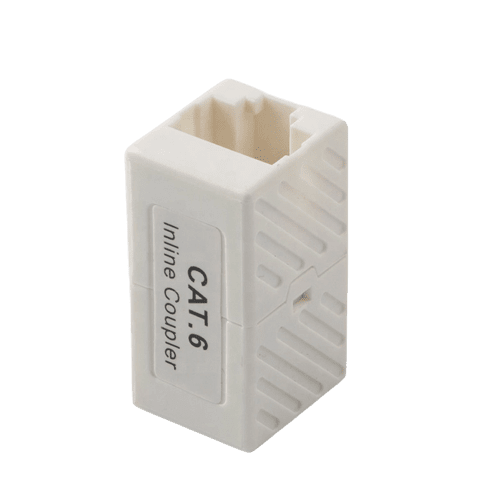

The RJ45 Female In-line coupler is suitable for extending Ethernet connection by connecting 2 short network cables.The coupler is 180 degree straight connection.It meets TIA/EIA 568-C.2 standards
Housing: High-impact Flame Retardant Polycarbonate,UL94V-0
Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N
