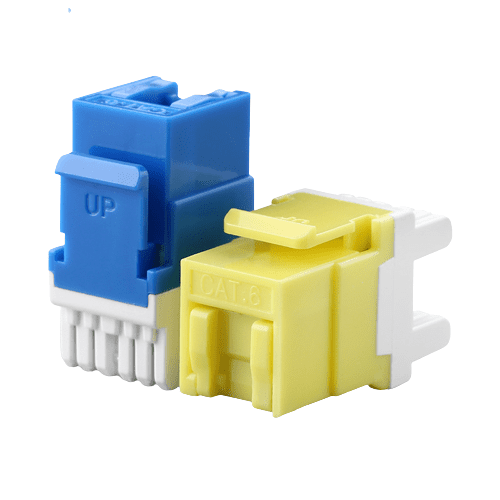

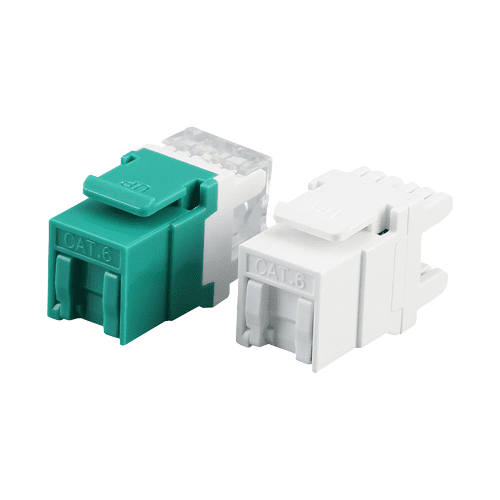

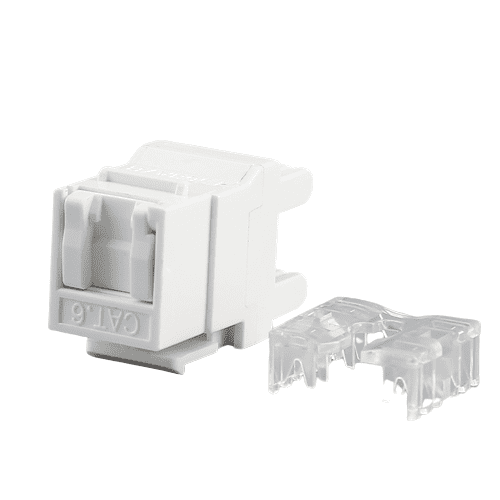

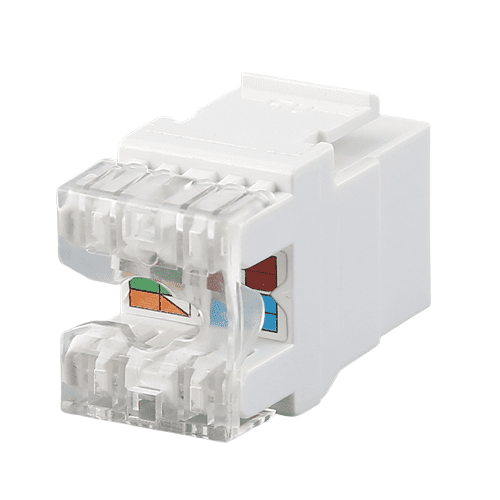

RJ-45 keystone jacks are 8-position 8-conductor (8P8C), support both T568A and T568B wiring and are designed for 22-26 AWG twisted pair cable. We offer many tests to guarantee the quality of every shipment to meet and ensure high performance. Our Cat5e/Cat6/Cat6a/Cat6 total cabling solution products can fulfill your high-speed transmission requirements from telecommunication rooms to work areas. All jacks are compliant with UL 1863 and come with a 25-year warranty.
Material:
Housing: ABS Housing UL94V-0/1/2
IDC Housing: PC UL 94V-0
Spring Wire: Phosphor bronze alloy plated with 3-50μin of gold over 70~100μin of nickel
Electrical Characteristics
Current Rating: 1.5 A max
Voltage Rating: 150 V
Contact Resistance: 20 mOhm
Insulation Resistance: 500 MOhm
Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min
| Mechanical and environmental characteristics | |||
| Product Type | Cat5e/Cat6/Cat6a/Cat7 Keystone Jack | Color | White/ Customize |
| Connector | RJ45 Female | Termination Type | Toolless/Punch Down/Inline Coupler |
| Shielding Type | Unshielded/Shield | Wiring Scheme | T568A/T568B |
| Wire Gauge Supported | 22-26AWG Cable | UL | UL 1863 compliant |
| Housing Material | ABS | Contact Plating Thickness | 3-50u |
| Operating Temperature | -10°C to 60°C | Storage Temperature | -40°C to 70°C |
| Insertion life | ≥1000 mating cycles | Plug Retention Force | 89N |
