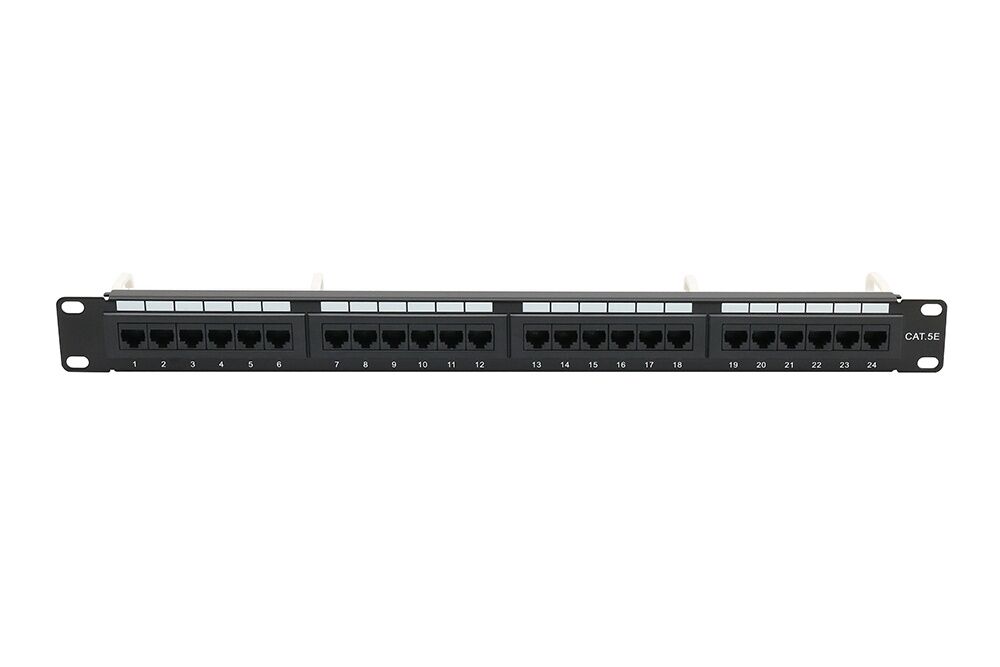

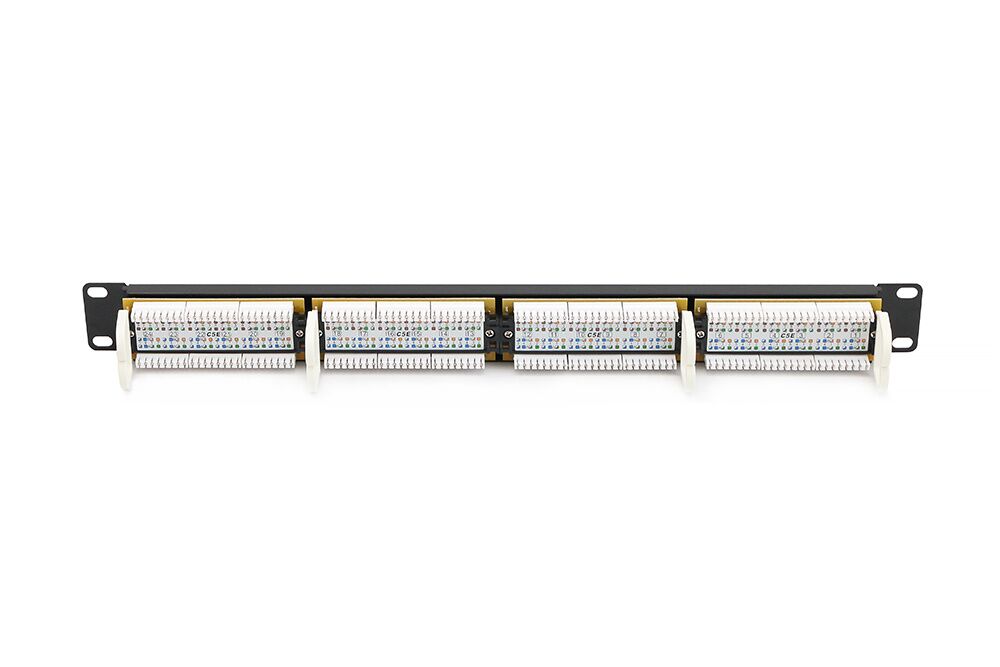

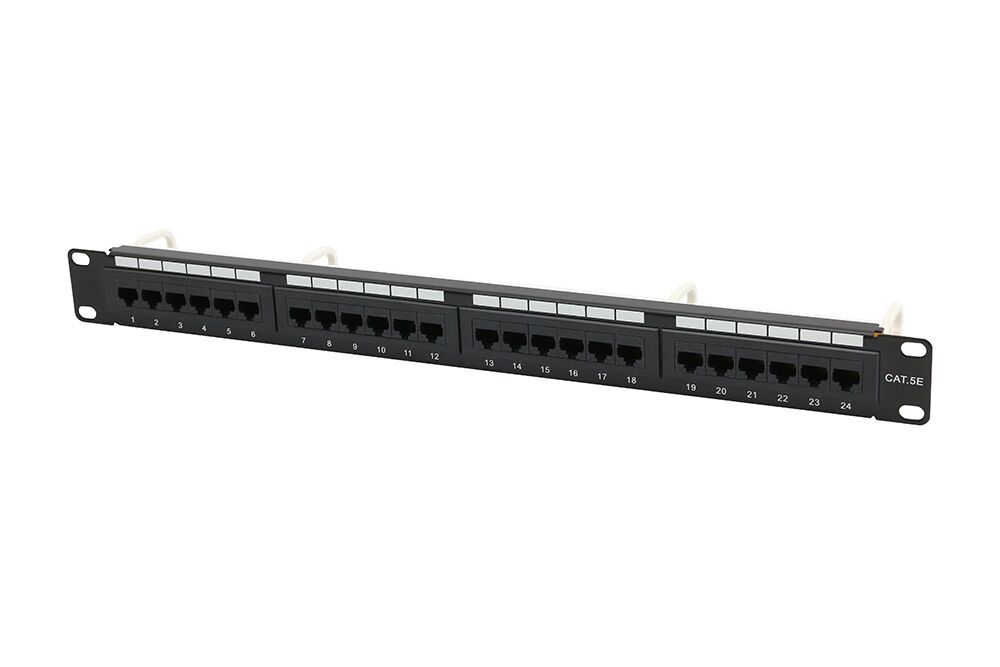

LHDE Cat5e/Cat6/Cat6a/Cat7/Cat8 Patch Panels are designed to maximize your network performance and keep your infrastructure ready for future upgrades in data centers, healthcare, government, pharmaceuticals, and IBMS. They are ideal for 10/100/1000Base-T and 10GBase-T Ethernet applications and meet or exceed the ANSI/TIA-568-C.2 Category 6, ISO/IEC118 1 and EN5 173-1 specification. It fits the standard 19″ cabinet and takes up 0.5U/1U /2U/4U depending on the model. The RJ45 interface provides a quick plug and play connection to RJ45 patch cords.
Electrical Characteristics
ISO/IEC11801 and TIA/EIA568 Standards at Swept Frequencies 1 to 550 MHz
Backward Compatible with RJ45 UTP/STP Patch Cords withT568A/T568B Wiring Schemes
Support POE/POE+ (IEEE 802.3af/at)
*Voltage rating: 125VCA RMS
*Current rating: 1.5Amp
*Contact resistance: 100 MILLIOHMS MAX
*Insulation Resistance:1000 MEGOHMS MIN@500VDC
*Dielectric strength: 750 VAC RMS, 60Hz 1min
| Mechanical and environmental characteristics | |||
| Product Type | Cat5e/Cat6/Cat6a/Cat7/Cat8 Patch Panel | Color | Black/ Customize |
| Type of Patch Panel | 19″ Flat/Angled | Ports | 12/24/48/96 Ports |
| Shielding Type | Unshielded/Shield(UTP/FTP) | Wiring Scheme | T568A/T568B |
| Wire Gauge Supported | 22-26AWG Solid and Stranded Cable | Approvals | RoHS /UL 1863 compliant |
| Material | SPCC + ABS Plastics | RJ45 Contact Plating Thickness | 3-50u |
| Operating Temperature | -10°C to 60°C | Storage Temperature | -40°C to 70°C |
| Insertion Life | ≥1000 mating cycles | Form of Sales | OEM&ODM |
