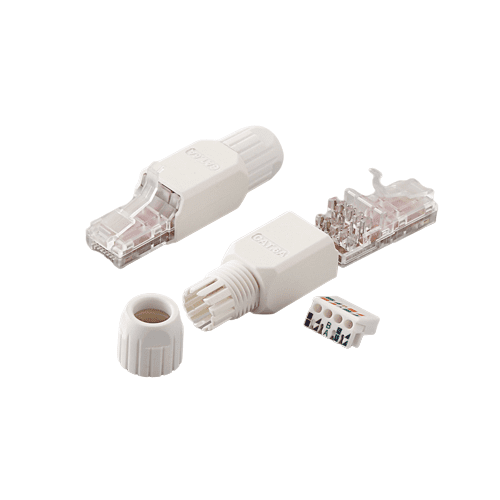

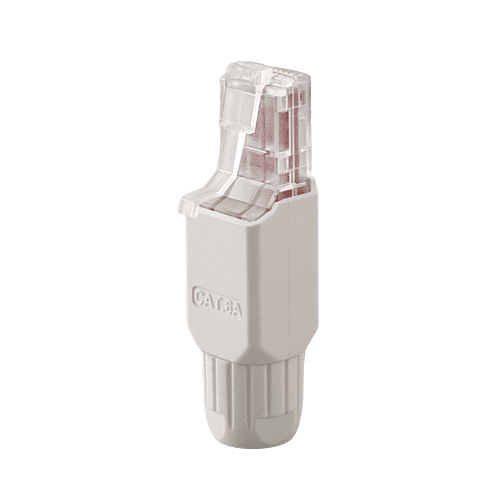

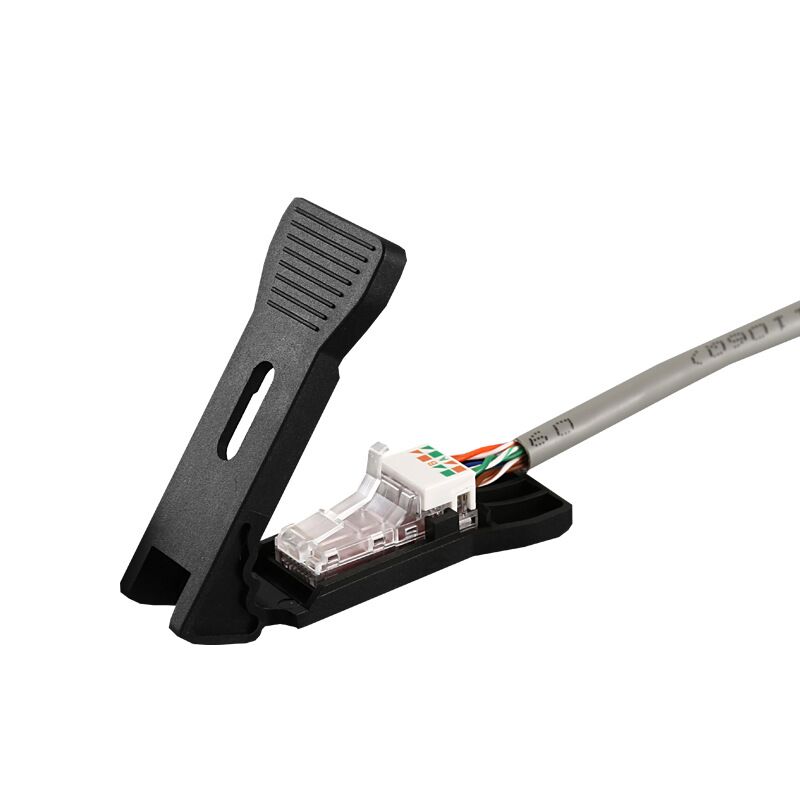

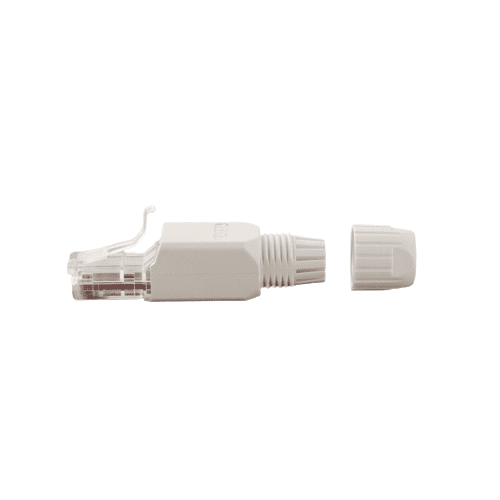

RJ-45 Modular Plug(Fast Connector) Toolless is 8-position 8-conductor (8P8C), supports T568A and T568B wiring, and is designed for 22-26 AWG twisted pair cable. Easy to assemble without tools. We offer many tests to guarantee the quality of every shipment to meet and ensure high performance. Our Cat6/Cat6a/Cat7/Cat8 total cabling solution products can fulfill your high-speed transmission requirements from telecommunication rooms to work areas. All Fast Connectors are compliant with UL 1863 and have a 25-year warranty.
| Mechanical and environmental characteristics | |||
| Product Type | Fast Connector(Modular Plug) | Color | White/ Customize |
| Connector | RJ45 | Termination Type | Toolless |
| Shielding Type | Unshielded/Shield | Contact | 8P8C |
| Wire Gauge Supported | 22-26AWG Cable | Housing Material | PC/Zinc Alloy |
| Insertion life | ≥1000 mating cycles | Housing Material | UL94V-0 |
| Operating Temperature | -10°C to 60°C | Storage Temperature | -40°C to 70°C |
